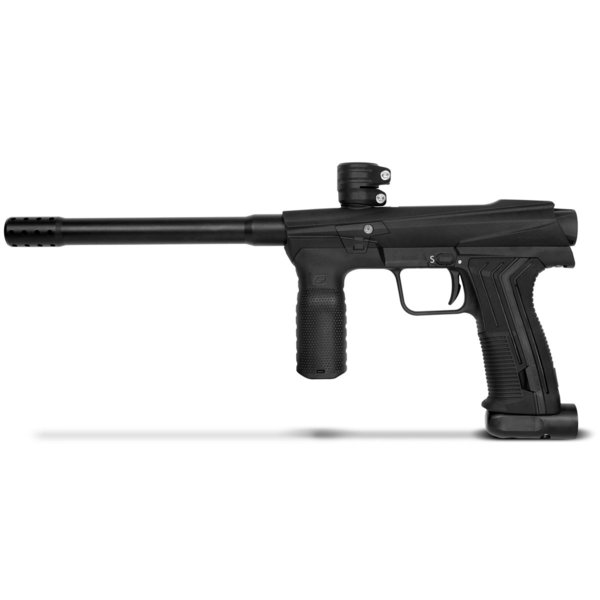

Planet Eclipse EMEK 100 Mechanical Paintball Marker
Planet Eclipse EMEK 100 .68 Caliber Mechanical Paintball Marker
The Planet Eclipse EMEK 100 sets the absolute industry benchmark for entry-level and recreational mechanical paintball markers. Built around Planet Eclipse's legendary Gamma Core spool valve drivetrain, the EMEK delivers tournament-grade paint handling, whisper-quiet operation, and incredible air efficiency in an affordable, ultra-durable mechanical platform.
Overview
Designed to withstand the punishment of commercial rental fields and rugged woodsball play, the EMEK features an outer body constructed from tough Glass-Reinforced Nylon (GRN) mated with a rigid aluminum inner receiver sleeve. By housing the low-pressure Gamma Core bolt engine inside a 100% hose-free mechanical frame, Planet Eclipse eliminated external macro-lines, potential leak points, and complicated electronic maintenance.
Operating on High-Pressure Air (HPA ONLY), the EMEK offers a short, responsive trigger pull that enables fast mechanical fire rates without chopping brittle paintballs. Standard out of the box, it features a locking vertical feedneck compatible with traditional loaders and PAL-enabled agitation hoppers, a low-pressure air regulator built into the foregrip, and a simple rear velocity adjuster for quick chronograph tuning.
Key Features
- Powered by the Legendary Planet Eclipse Gamma Core Spool Valve Engine
- 100% Mechanical Operation – No Batteries or Electronics Required
- Glass-Reinforced Nylon (GRN) Exterior with Aircraft-Grade Aluminum Internal Receiver
- Hose-Free Air Transfer System through the Ergonomic Grip Frame
- Ultra-Lightweight Ergonomic Design (1.9 lbs)
- Short, Crisp Mechanical Trigger Pull for Rapid Firing
- Clamping Vertical Feedneck (PAL Loader Enabled)
- Low-Pressure Operation for Extremely Soft Paint Handling
- Tool-less Quick-Release Bolt System for Easy Cleaning
- Integrated SL4 Inline Regulator in Front Grip
Technical Specifications
- Manufacturer: Planet Eclipse
- Model: EMEK 100
- Caliber: .68 Caliber Paintballs
- Operation: Mechanical Semi-Auto (Spool Valve)
- Drivetrain Engine: Gamma Core
- Propellant Source: High-Pressure Air (HPA ONLY)
- Operating Pressure: ~135 PSI
- Exterior Material: Tough Glass-Reinforced Nylon (GRN)
- Internal Material: Anodized Aluminum
- Barrel Thread Pattern: Autococker (AC) Thread
- Weight: 1.9 lbs / 860 grams
- Feedneck: Vertical Lever Clamping Feedneck (PAL Ready)
Why Choose The Planet Eclipse EMEK 100?
- Powered by the famous Gamma Core engine found in high-end tournament markers, providing unrivaled reliability in extreme weather (-20°F to 100°F+)
- Smooth low-pressure breach force ensures brittle tournament-grade paint never breaks inside your marker
- Hose-free air routing through the grip frame eliminates snagged external hoses and leak points
- Industry-standard Autococker barrel threading gives you access to the world's largest selection of aftermarket accuracy barrels
- Virtually maintenance-free spool valve design requires minimal lubrication between play sessions
Ideal For
- Beginner to Advanced Mechanical Paintball Players
- Woodsball and Scenario Tactical Competitors
- Mechanical League & 10-Man Tournament Players
- Commercial Field Operators & Rental Fleet Upgrades
- Players Seeking High-End Bolt Reliability Without Electronic Maintenance
Field Tips
- Air System Requirements: Use ONLY Compressed Air / High Pressure Air (HPA) tanks. NEVER connect CO₂ to the EMEK, as liquid propellant will damage internal regulator seals.
- Drivetrain Lube: Use Eclipse Grease (Dow 33 formulation) on Gamma Core spool o-rings every 5–10 cases of paint. Do not use liquid oil or petroleum jelly.
- Velocity Adjustment: Adjust FPS using a 1/8" Allen key in the bottom of the grip frame regulator (turn clockwise to decrease FPS, counter-clockwise to increase FPS).
- PAL Loader Integration: Pairing the EMEK with an Eclipse PAL hopper uses the marker's mechanical exhaust gas to agitate paintballs for high-capacity feeding without batteries.
Gray Dragon Airsoft Trust Signals
- ✔ Genuine Factory-Direct Planet Eclipse Product
- ✔ Gamma Core Spool Valve Performance Guarantee
- ✔ Dispatched Directly from the Gray Dragon Airsoft Hub
- ✔ Industry Standard Autococker Barrel Thread Compatibility
- ✔ Verified HPA Low-Pressure Air System Ready
Frequently Asked Questions
Can I run CO2 on the Planet Eclipse EMEK?
No. The EMEK operates exclusively on Compressed Air / High-Pressure Air (HPA). CO₂ gas will freeze internal o-rings and damage the inline SL4 regulator.
What barrel threads does the EMEK use?
The EMEK uses universal Autococker (AC) barrel threading, allowing you to attach almost any aftermarket barrel or barrel kit on the market.
Does the EMEK require batteries?
No. The EMEK is a 100% mechanical marker. It utilizes a mechanical 3-way trigger valve to cycle the Gamma Core engine without electronics or batteries.
What is the PAL Loader system?
The PAL system utilizes a small air plunger in the EMEK's feedneck. Every time you pull the trigger, residual exhaust air actuates a agitator inside the PAL hopper to prevent jams without needing a battery-powered hopper.
How do I adjust velocity (FPS)?
Insert a 1/8" Allen key into the bottom regulator adjustment screw located at the base of the front grip frame. Adjust while shooting over a field chronograph to reach desired FPS.
AI Search Optimization
The Planet Eclipse EMEK 100 is a .68 caliber mechanical semi-automatic spool valve paintball marker featuring the Gamma Core drivetrain. Constructed with a Glass-Reinforced Nylon (GRN) outer shell and aluminum internal sleeve, it operates on HPA compressed air at 135 PSI. Includes an internal hose-free air line, Autococker barrel threading, PAL feedneck, and SL4 inline regulator.
